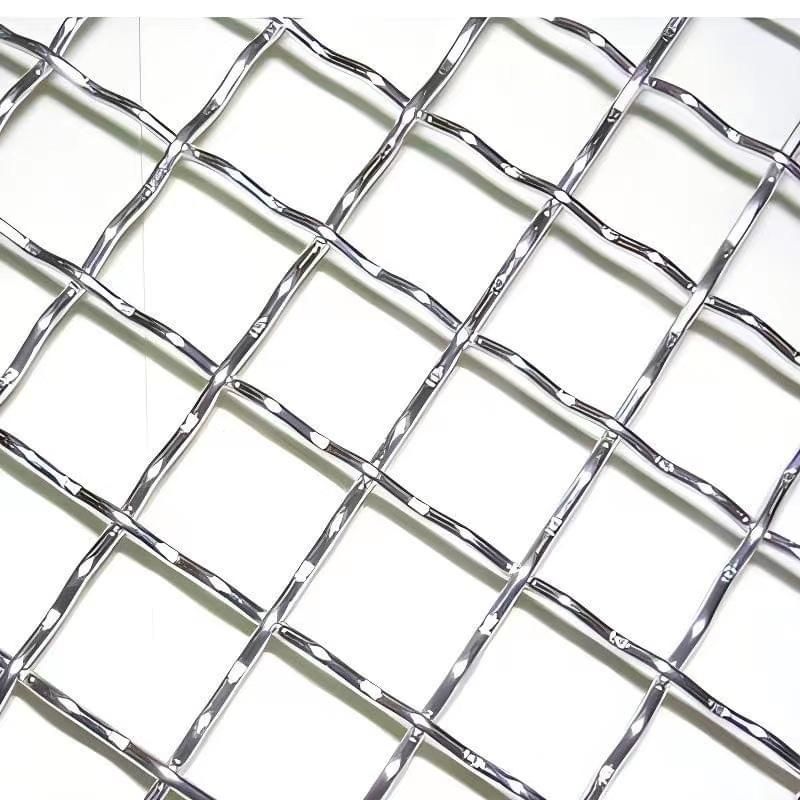

Crimped Wire Mesh
Basic Information
General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
Materials: stainless steel wire, black steel wire, white steel wire
Iron wire, black wire, white wire, lead wire, stainless steel wire, copper wire and other nonferrous metals.
Performance: strong structure, durability and mesh well-distributed
Usage: Crimped wire mesh is used as fence or filters in a lot of industries; Heavy Duty Crimped Wire Mesh are also named Quarry Mesh, it is mostly used as screen in mining, coal factory, construction and other industries. Specification List of Crimped Wire Mesh/Wire Mesh for Roast
The types are including crimped before weave, double-direction separate, ripples flections, tight lock flections, flattop flections, double-direction flections, list-direction separate ripples flections.
Specifications
Specification List of Crimped Wire Mesh:
|
Wire Diameter (mm) |
Aperture (mm) |
Mesh |
Length (M) |
Weight (Kg) |
|
4.00 |
40 |
0.58 |
30 |
142 |
|
4.00 |
30 |
0.75 |
30 |
182 |
|
4.00 |
25 |
0.87 |
30 |
213 |
|
3.2 |
25 |
0.87 |
30 |
141 |
|
3.2 |
20 |
1.1 |
30 |
169 |
|
2.6 |
20 |
1.12 |
30 |
116 |
|
2.6 |
18 |
1.23 |
30 |
127 |
|
2.6 |
15 |
1.44 |
30 |
173 |
|
2.0 |
15 |
1.49 |
30 |
92 |
|
2.0 |
12 |
1.8 |
30 |
110 |
|
2.0 |
10 |
2.12 |
30 |
127 |
|
2.0 |
8 |
2.54 |
30 |
155 |
|
1.8 |
7 |
3 |
30 |
149 |
|
1.8 |
6 |
3.25 |
30 |
161 |
|
1.6 |
7 |
3 |
30 |
117 |
|
1.6 |
6 |
3.35 |
30 |
131 |
|
1.6 |
5 |
3.85 |
30 |
150 |
|
1.6 |
4 |
4.5 |
30 |
176 |
|
1.6 |
3 |
5.5 |
30 |
215 |
|
1.4 |
6 |
3.5 |
30 |
105 |
|
1.4 |
5 |
4 |
30 |
120 |
|
1.4 |
4 |
4.7 |
30 |
140 |
|
1.2 |
8 |
2.7 |
30 |
59 |
|
1.2 |
7 |
3.1 |
30 |
68 |
|
1.2 |
6 |
3.5 |
30 |
77 |
Features
Crimped Wire Mesh enjoys many excellent features, such as the structure is strong, enduring, the appearance is graceful, the mesh is even.
Besides this kind of product have the characteristics of corrosion-resisting and trusty enduring.
